LABEL 6 - Ceiling
HOME>Products>Indoor>Ceiling luminaires>LABEL
Concept

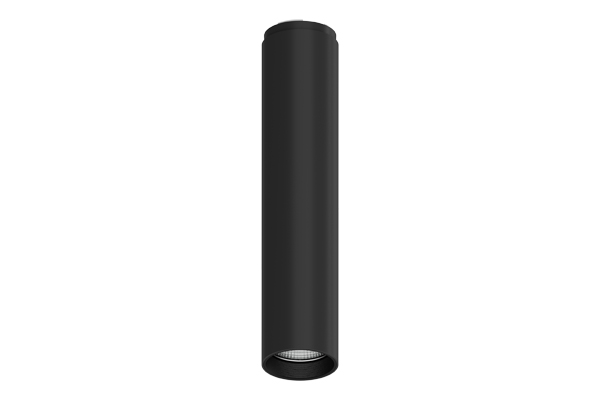

LED Ceiling-mounted fixture for direct light emission powered by mains voltage.
Material
Cylindrical body in aluminum obtained through extrusion machining process and coated with powder paint.
Source
High efficiency Ra90 LED Chip on Board.
2700K-3500K on request.
Optic
SP and FL version - metallised polycarbonate precision optics, a holographic diffusion filter and a black silicone cut off ring; MWFL version - convex faceted highly reflective anodised aluminium precision optics, a holographic diffusion filter and a black silicone cut off ring.
Installation
Kit with fixing plate for ceiling installation already included.
Power Supply
Available in electronic and DALI versions with power supply integrated in the body of the fixture.
For more information
about LABEL 6 - Ceiling
Reset selections
LABEL 6 - Ceiling
0.7
IP20
Source
Code
CCT nominal
Flux (lm)
Nominal power
Colour rendering index
Beam angles
Optic
Emission
Colour and finish
Version
Dimensions
Power supply
Type of driver / Control
Driver included
Insulation Class
Protection degree
IP exposed part
IK
Class F
Certifications
LED

3000K

8,3W
90
SP
REFLECTOR

Plaster white

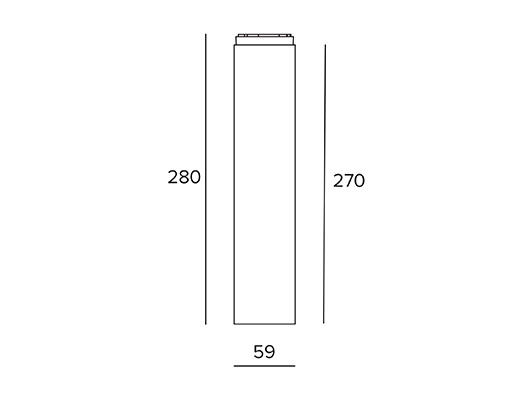

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
SP
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

3000K

8,3W
90
SP
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
SP
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

3000K

8,3W
90
SP
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
SP
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

LED

3000K

8,3W
90
SP
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
SP
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

LED

3000K

8,3W
90
FL
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
FL
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

3000K

8,3W
90
FL
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
FL
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

3000K

8,3W
90
FL
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
FL
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

LED

3000K

8,3W
90
FL
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
FL
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

LED

3000K

8,3W
90
MWFL
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
MWFL
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

3000K

8,3W
90
MWFL
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
MWFL
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

3000K

8,3W
90
MWFL
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
MWFL
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

LED

3000K

8,3W
90
MWFL
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
MWFL
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

Code
1T9768EL
1T9769EL
1T9774EL
1T9775EL
1T9768DA
1T9769DA
1T9774DA
1T9775DA
1T9770EL
1T9771EL
1T9776EL
1T9777EL
1T9770DA
1T9771DA
1T9776DA
1T9777DA
1T9772EL
1T9773EL
1T9778EL
1T9779EL
1T9772DA
1T9773DA
1T9778DA
1T9779DA
