Concept

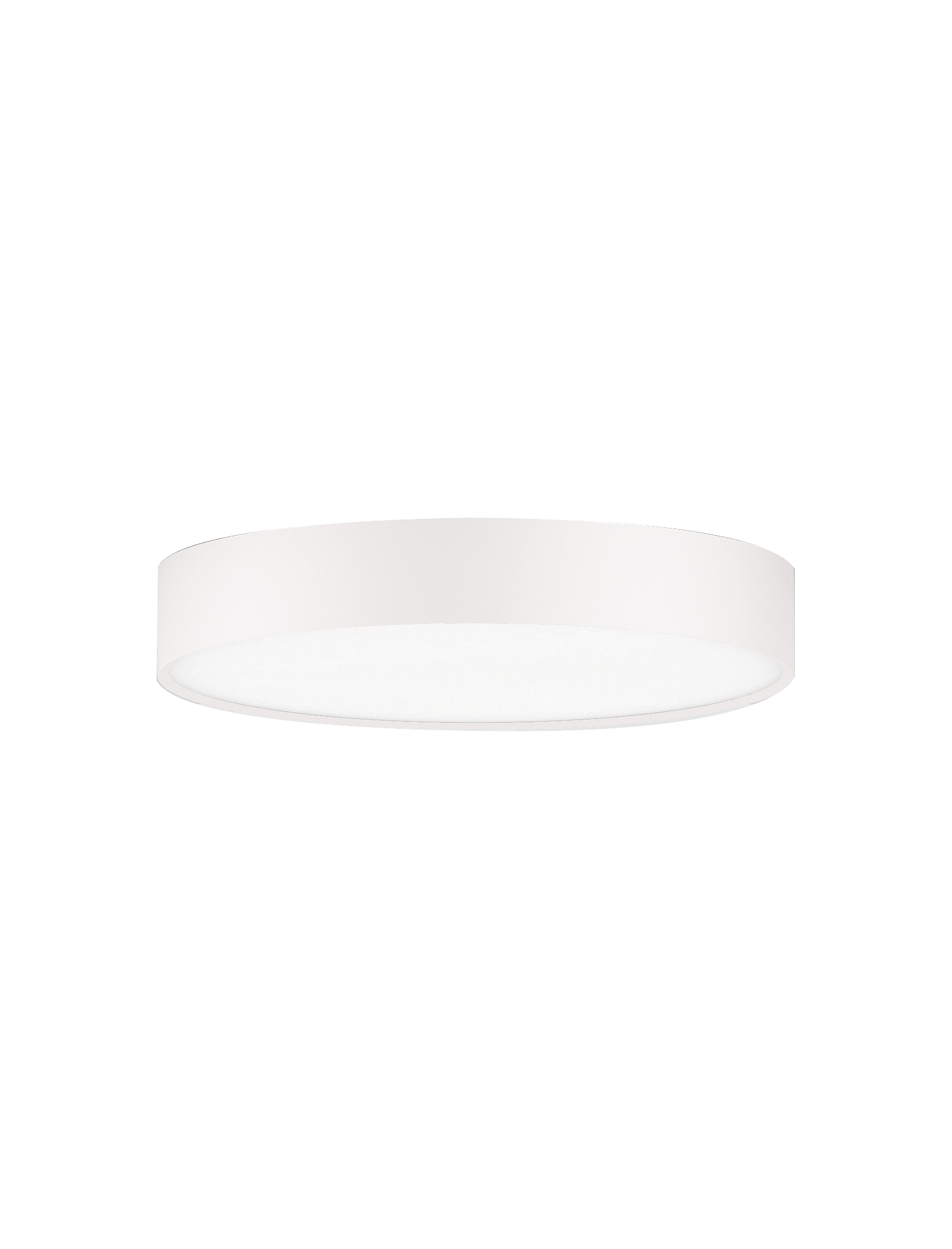

Circular LED fixture for ceiling mounted, suspension, recessed, semi-recessed and wall mounted installations.Material
Calendered extruded aluminium body.Source
The LED Engine is made up of self-cooling circular boards.
Also available in High Power and Low Power versions.
Tunable White version available on request.Optic
OPAL Direct Version: High luminance transmission and light diffusion opaline polycarbonate lower diffusive screen.
OPAL Direct/Indirect Version: High luminance transmission and light diffusion opaline polycarbonate lower diffusive screen.
Diffused indirect emission LED Chip On Board.
OPAL Direct + HALO effect Version: High luminance transmission and light diffusion opaline polycarbonate lower diffusive screen.
Small indirect light component for a backlit effect.
UGR Direct Version: Transparent micro prismatic PMMA lower diffusive screen and spreader lens.
UGR Direct/Indirect Version: Transparent micro prismatic PMMA lower diffusive screen and spreader lens.
Diffused indirect emission LED Chip On Board.
UGR Direct + HALO effect Version: Transparent micro prismatic PMMA lower diffusive screen and spreader lens.
Small indirect light component for a backlit effect.
UGR Version: UGR<19 and L65<3000 cd/m² (EN-12464).Installation
Polycarbonate fixing system is pre-set for ceiling or wall mounted installations.
Suspension and recessed installation is possible using a special accessory to be ordered separately.Power Supply
Integrated electronic power supply or DALI.
Emergency Pack available on request.
Equipped with a rapid connector for mains connection.Notes
Casambi control system available using a dedicated accessory (only for DALI version products).
DIRECT/INDIRECT VERSION: Fitted with separate switches.
Three different light effects available: direct light, indirect light and mixed direct/indirect light.
Check mounting instructions to verify the quantity of DALI drivers installed.
110-277Vac version available on request.
