LABEL 6 - Suspension
HOME>Products>Indoor>Pendant luminaires>LABEL
Concept
LED suspension fixture for direct light emission powered by mains voltage.
Material
Cylindrical body in aluminum obtained through extrusion machining process and coated with powder paint.
Source
High efficiency Ra90 LED Chip on Board.
2700K-3500K on request.
Optic
SP and FL version - metallised polycarbonate precision optics, a holographic diffusion filter and a black silicone cut off ring; MWFL version - convex faceted highly reflective anodised aluminium precision optics, a holographic diffusion filter and a black silicone cut off ring.
Installation
Complete with canopy and 2000mm long multicore suspension cable in coloured fabric with lenght adjustment system.
Both supplied in white or black color depending on the color of the chosen product.
Power Supply
Available in electronic and DALI versions with power supply integrated in the body of the fixture.
For more information
about LABEL 6 - Suspension
Reset selections
LABEL 6 - Suspension
1.1
IP20
Source
Code
CCT nominal
Flux (lm)
Nominal power
Colour rendering index
Beam angles
Optic
Emission
Colour and finish
Version

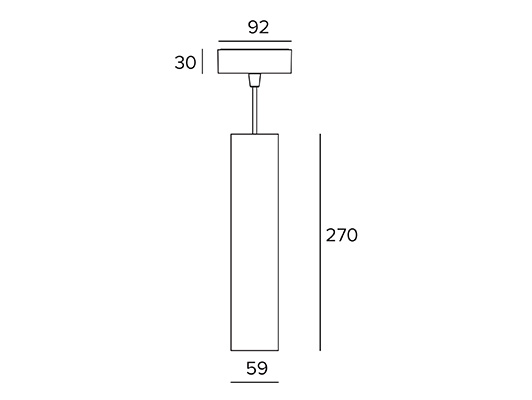

Dimensions
Power supply
Type of driver / Control
Driver included
Insulation Class
Protection degree
IP exposed part
IK
Class F
Certifications
LED

3000K

8,3W
90
SP
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
SP
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

3000K

8,3W
90
SP
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
SP
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

3000K

8,3W
90
SP
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
SP
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

LED

3000K

8,3W
90
SP
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
SP
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

LED

3000K

8,3W
90
FL
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
FL
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

3000K

8,3W
90
FL
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
FL
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

3000K

8,3W
90
FL
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
FL
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

LED

3000K

8,3W
90
FL
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
FL
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

LED

3000K

8,3W
90
MWFL
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
MWFL
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

3000K

8,3W
90
MWFL
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
MWFL
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP20


YES

LED

3000K

8,3W
90
MWFL
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
MWFL
REFLECTOR

Plaster white

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

LED

3000K

8,3W
90
MWFL
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

LED

4000K

8,3W
90
MWFL
REFLECTOR

Deep black

D=59mm
220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP20


YES

Code
1T9804EL
1T9805EL
1T9810EL
1T9811EL
1T9804DA
1T9805DA
1T9810DA
1T9811DA
1T9806EL
1T9807EL
1T9812EL
1T9813EL
1T9806DA
1T9807DA
1T9812DA
1T9813DA
1T9808EL
1T9809EL
1T9814EL
1T9815EL
1T9808DA
1T9809DA
1T9814DA
1T9815DA
