Concept
Modular low voltage outdoor system. Thanks to its flexibility, it can be installad in contexts of curved and irregular surfaces.Material

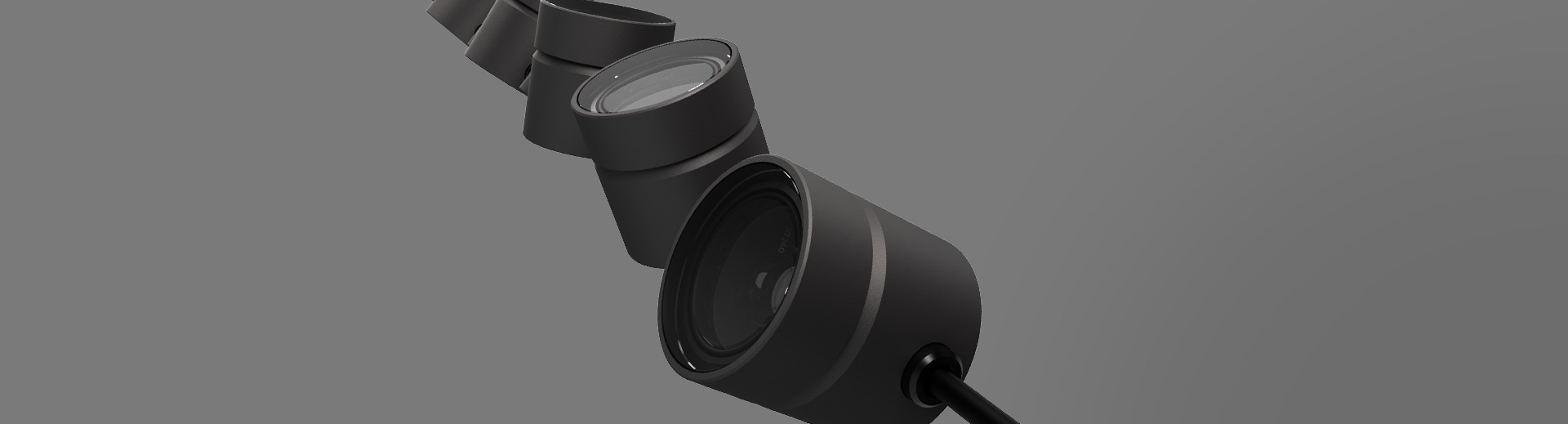

It's made of adjustable projectors that can be oriented in multiple directions in space, thanks to a mechanical connection made through spherical joints.
Cylindrical aluminium bodies obtained through CNC machinining process and protected with a layer of black anodization with a minimum thickness of 15µ.
Joint body in die-cast aluminum with cataphoresis treatment.
Also available powder coated in olive green, burnished copper and dune grey colours.
Tempered extra clear front glass.
Flexibility of the optical bodies by ±110° on the vertical plane and mechanical locking.
Flexibility of the chain with respect to the contact surface of ±45°.
Minimum achievable curvature radius of 95mm with an angle of 45° between projectors.
IP67 in-out connectors (in Nylon).Source
NSP version: Ra90 LED Emitter available with three colour temperatures.
Other versions: Ra90 high efficiency LED Chip on Board available in four colour temperatures.Optic

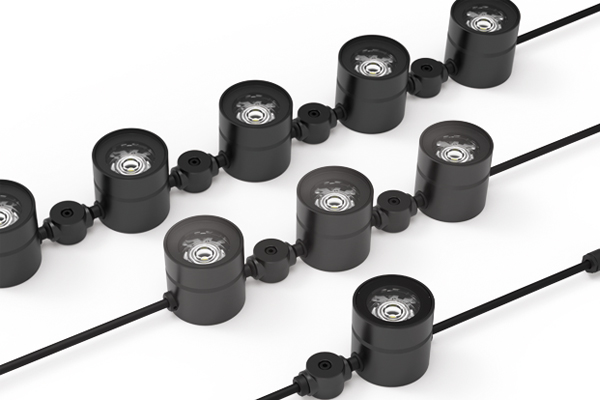

Standard version with an optical grade PMMA TIR lens and a holographic diffusing filter: available with NSP, SP, FL, MWFL and Grazing beam openings.

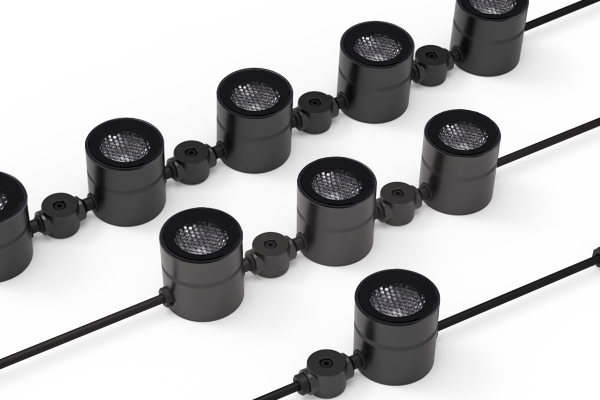

Louvre version: optic composed of an optical grade PMMA TIR lens, a holographic diffusing filter and a black painted aluminium anti-glare grill with a honeycomb structure; available with SP, FL and Elliptical beam openings.
Optical accessories available to control the light beam.Installation

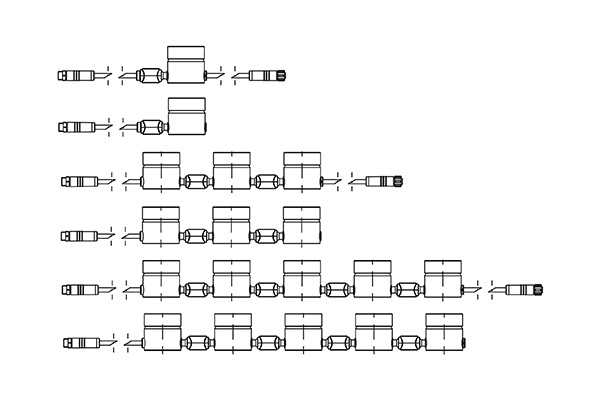

IN-OUT versions: preset for connection in series through connection cable for outdoor environments (0.15m + 0.15m) completed with male/female miniaturised IP67 connectors.
END versions: terminal element with connection cable for outdoor environments (0.15m) completed with male miniaturised IP67 connector.
Accessories available for multiple installation modes.Power Supply
To be completed with remote driver.
Connection cables and 3-way connector available as accessories.
Complete with through wiring.
Refer to installation manual for the maximum system distances.Notes
The photometrics refer to individual projectors.
Values related to the power consumption of the fixture do not take into account the consumption of the accessory driver, which depends on the choice of driver.
