Concept

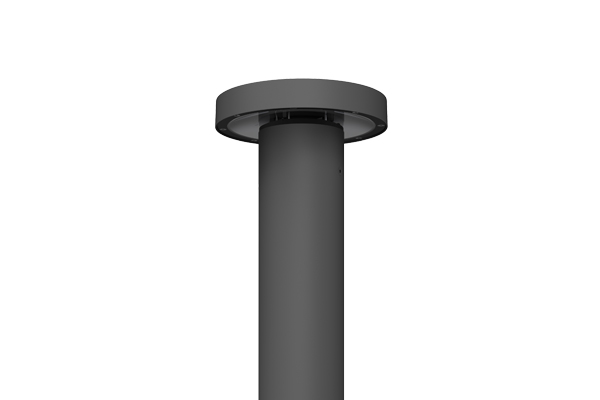

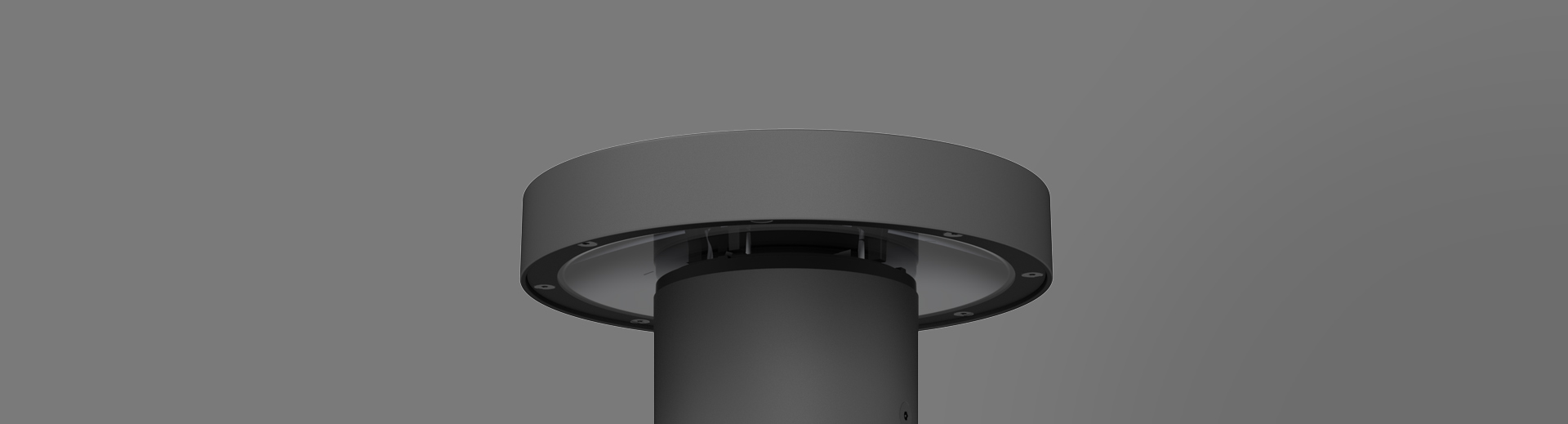

Radial-emission LED bollard.Material
Extruded aluminium body covered with cataphoresis protective treatment and coated with powder painting in Ferrite finish color.
Anodized die-cast aluminium optical head.Source
LED Chip on Board Ra80.
Ra90 on request.Optic
A high reflectance anodised aluminium printed reflector.
Transparent polycarbonate screen placed horizontally to avoid upwards flow (0 candles above horizontal axis).Installation
Fixing system for the optical head through thrust screws.

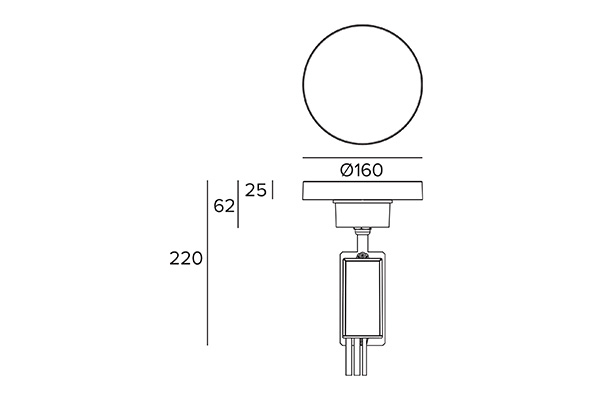

Available with three different height poles - 371, 771 and 971mm - to be combined with the relative head available in four different versions - 360°, 180°, 90°, 90°+90°.
To be completed with a stainless steel anchoring system, available in two versions with hidden plate or surface plate for installation with dowels.
On both mounting options it is possible to apply stainless steel rods for installation in concrete.Power Supply
Integrated electronic or DALI power supply.
Casambi control system available using a dedicated accessory (only for DALI version products).Notes
Uses the "Waterblock Plus" technical solution that involves resin coating the connection cables and completely resin coating the integrated driver limiting the risk of humidity reaching the fixture.
Cataphoresis tratement for the optical head available on request.
110-277Vac version available on request.
