Concept

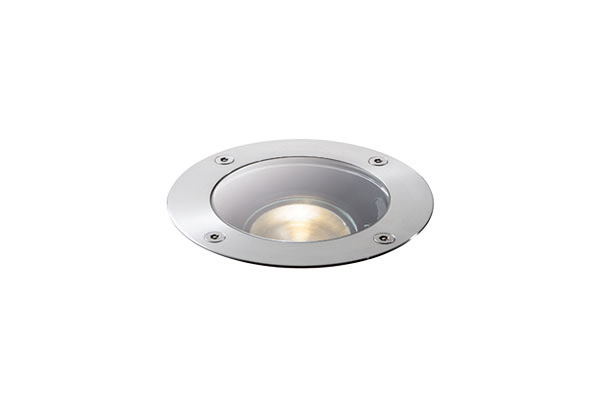

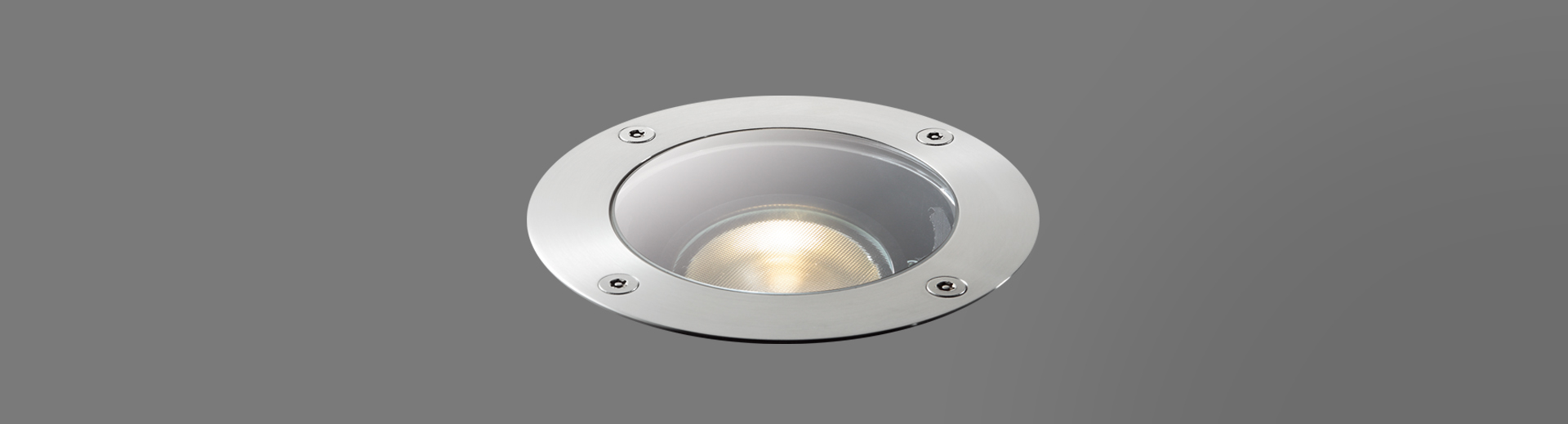

Compact inground adjustable projector equipped with LED sources.Material
Die-cast aluminium body with 3 layers of protection: anodised, cataphoresis and black paint.
Brushed stainless steel (AISI 316) ultra flat decorative ring with bevelled edge (natural finish o copper bronze).
Version with extra-clear protective glass or special anti-slip glass for public pedestrian areas.
Anti theft stainless steel A4 Torx screws.Source
High efficiency Ra80 LED Chip on Board, available in 2700K, 3000K, 4000K colour temperatures.
3500K on request.Optic
A hybrid lens and reflector Zoom optical system with variation of the beam opening in four positions (Spot, Flood, Medium Wide, Wide Flood).
Aiming using a tilting system up to 20° on the vertical axis and 360° on the horizontal plane with a friction aim locking system.Installation
Nylon installation sleeve to be ordered separately as an accessory.
The sleeve is pre-set for both flush or straight edge installation.
20kN resistance to static load.Power Supply
110-240Vac power supply with an ON-OFF integrated driver or DALI.
Connection to the mains via IP68 watertight connectors for H07RN8-F cable (max 2x2.5mm²).Notes
All light fixtures must be completed with an installation sleeve.
IP68: the fixture is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 2 metres (max.24h).
IP69: IEC/EN 60529 standard compliant.
All versions of the KEPLERO family meet all the requirements of EN 60598-2-13 standard regarding drive-over and walk-over performances.
Low temperatures on the glass make them suitable even for installation in "special areas", such as spaces for children.
Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture.
110-277Vac version available on request.
