Concept

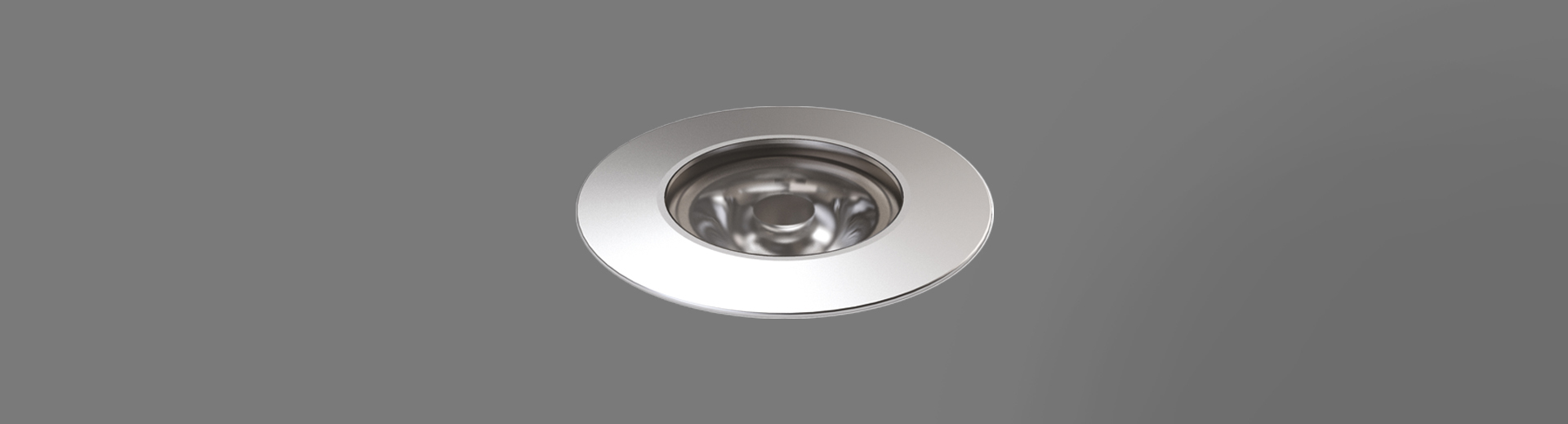

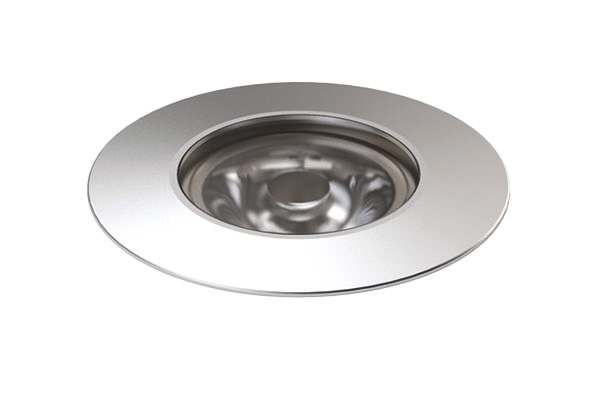

Miniaturised recessed LED fixture.Material
Anodised polished aluminium body.
Polished stainless steel front ring.
Bevelled extra-clear front glass.
Passive cooling system.Source
High efficiency Ra80 LED Chip on Board, available in 2700K, 3000K, 4000K colour temperatures.Optic
Precision optical system with a PMMA lens for different beam openings.

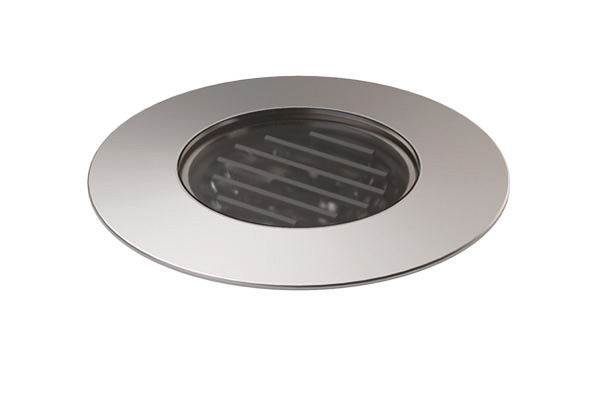

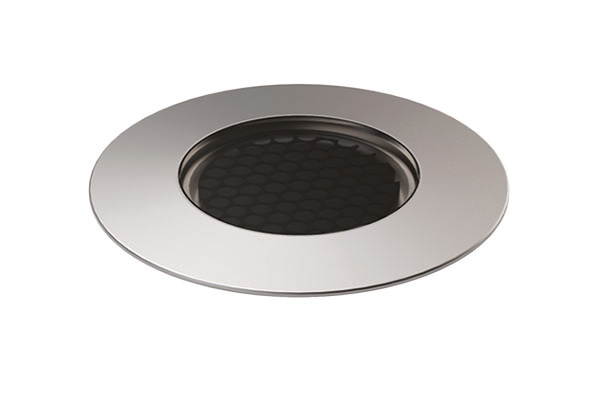

Versions with the light control system integrated into the front for symmetrical (honeycomb) and asymmetrical emissions, with various beam openings.Power Supply
Powered by a 230V/24Vdc electronic transformer to be ordered separately.
Pre-wired with 300mm of wire.
Dimmable with a special accessory kit.Notes
Casambi control system available using a dedicated accessory (only with DALI dimmer).
Available in a drive-over, drive-over with an anti-glare grill and drive-over with an asymmetrical screen versions.
Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture.
110-277Vac version available on request.
Values related to the power consumption of the fixture do not take into account the consumption of the accessory driver, which depends on the choice of driver.
IP68: the projector is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 2 metres (max.24h).
IP69: IEC/EN 60529 standard compliant.
