Concept

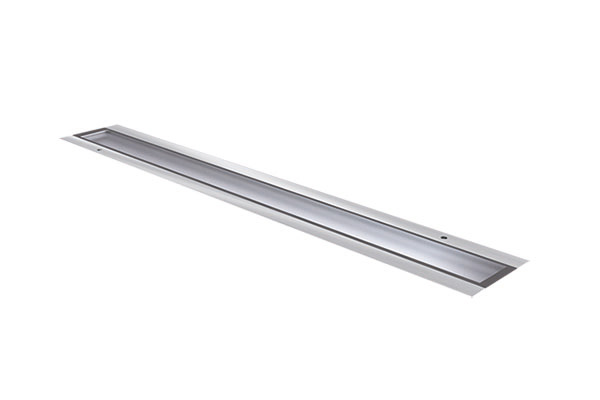

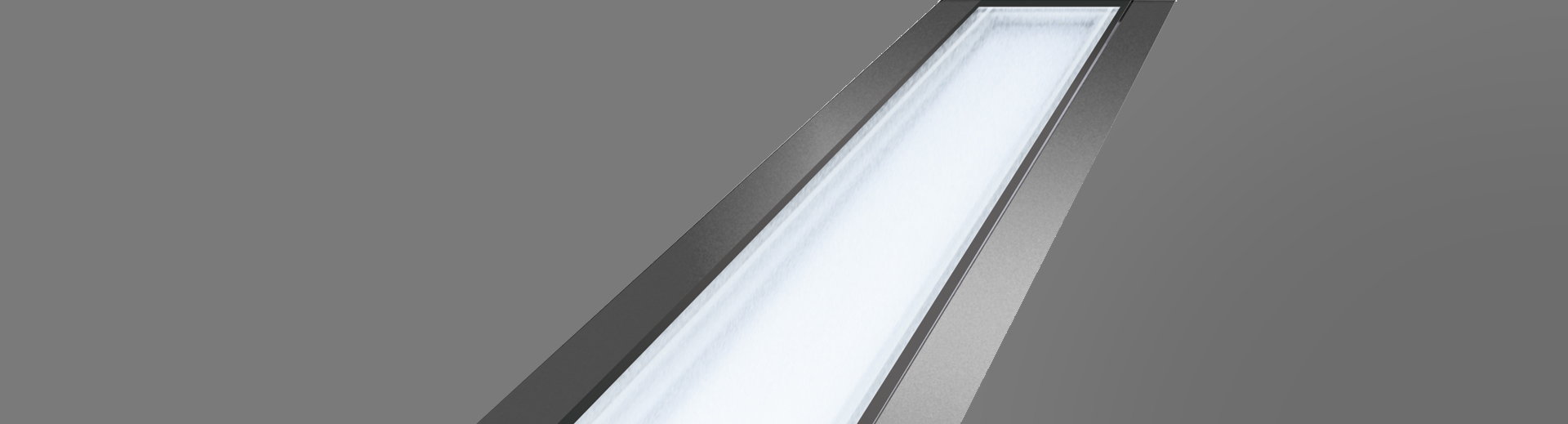

Recessed linear LED projector.Material
Extruded anodised aluminium 15µ body.
Extra clear 10mm thick glass flat screen.
Brushed stainless steel (AISI 316) frame.
The body of the fixture can resist a static load up to 20kN and vandalism (IK10).
Anti-slip glass available on request.Source
SP: High efficiency LED Emitter Ra80.
FL, WW, GRAZING: Linear Low Power High Efficiency LED board Ra80.
2700K-3500K on request.Optic
Internal optical unit composed of a cylindrical glass primary lens, a highly reflective anodised aluminium reflector and an integrated holographic filter for Grazing, Flood and Wall Washer emissions; acrylic lenses with an integrated holographic filter for Spot emissions.Installation
To be completed with an aluminium insertion box suitable for in-line installation.Power Supply
Integrated electronic power supply for standard and DALI versions.
Complete with IP68 connector for power supply.
To be completed with a watertight IP68 (IN-OUT) connector kit with a quick installation system (1E2769) or with a connection cable complete with 5 pin connector (1E2762, 1E2763, 1E2764, 1E2765) for in-line installations.
Fixture with "internal" wire feedthrough.Notes
Casambi control system available using a dedicated accessory (only for DALI version products).
Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture.
110-277Vac version available on request.
IP68: the projector is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 2 metres (max.24h).
IP69: IEC/EN 60529 standard compliant.
