MR SMITH
Concept

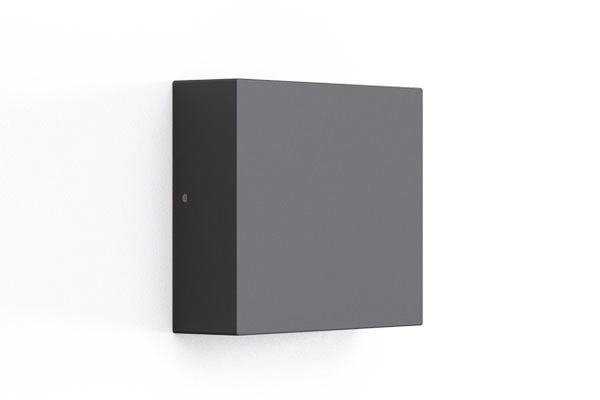

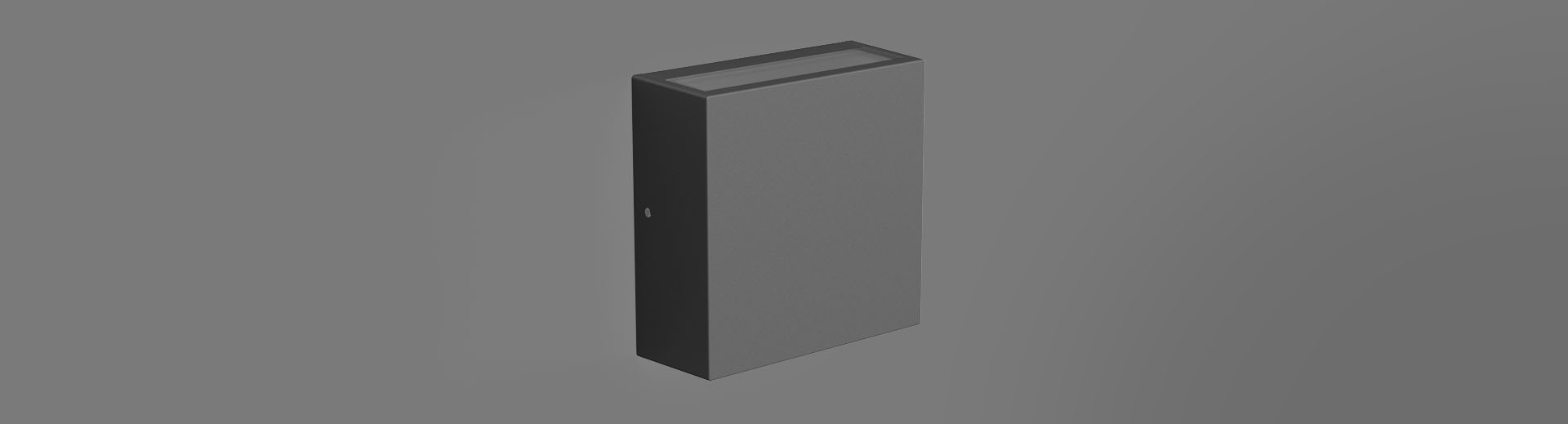

Wall-mounted LED fixture.
Material
Painted die-cast anodised aluminium body.
Injection moulded opal polycarbonate screen.
Source
High efficiency Ra90 LED Chip on Board.
3500K on request.
Optic
MicroPet, high reflectance white spotlight.
Available with direct, indirect, and direct/indirect emission.
Installation
Wall-mounted version with direct attachment on the rear frame of the product.
Power Supply
230V version with integrated driver.
Notes
Casambi control system available via accessory (only with DALI dimmer or in the DALI version).
Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture.
It is possible to subject the product to Cataphoresis treatment on request.
110-277Vac version available on request.
For more information
about MR SMITH
Reset selections
MR SMITH
IP65
IK08
Source
Code
CCT nominal
Flux (lm)
Nominal power
Colour rendering index
Beam angles
Optic
Emission
Colour and finish
Version

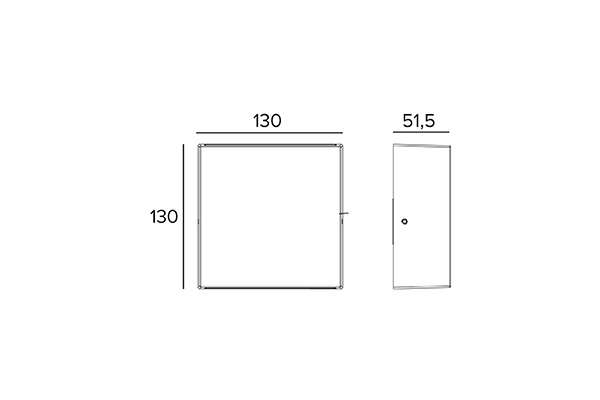

Dimensions
Power supply
Type of driver / Control
Driver included
Insulation Class
Protection degree
IP exposed part
IK
Class F
Certifications
LED

2700K

5,9W
90

OPAL
DIRECT
Ferrite

AxB=130x130mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP65

IK08
YES

LED

3000K

5,9W
90

OPAL
DIRECT
Ferrite

AxB=130x130mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP65

IK08
YES

LED

4000K

5,9W
90

OPAL
DIRECT
Ferrite

AxB=130x130mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP65

IK08
YES

LED

2700K

5,9W
90

OPAL
DIRECT
Ferrite

AxB=130x130mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP65

IK08
YES

LED

3000K

5,9W
90

OPAL
DIRECT
Ferrite

AxB=130x130mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP65

IK08
YES

LED

4000K

5,9W
90

OPAL
DIRECT
Ferrite

AxB=130x130mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP65

IK08
YES

LED

2700K

5,9W
90

OPAL
INDIRECT
Ferrite

AxB=130x130mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP65

IK08
YES

LED

3000K

5,9W
90

OPAL
INDIRECT
Ferrite

AxB=130x130mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP65

IK08
YES

LED

4000K

5,9W
90

OPAL
INDIRECT
Ferrite

AxB=130x130mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP65

IK08
YES

LED

2700K

5,9W
90

OPAL
INDIRECT
Ferrite

AxB=130x130mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP65

IK08
YES

LED

3000K

5,9W
90

OPAL
INDIRECT
Ferrite

AxB=130x130mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP65

IK08
YES

LED

4000K

5,9W
90

OPAL
INDIRECT
Ferrite

AxB=130x130mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP65

IK08
YES

LED

2700K

12W
90

OPAL
DIRECT/INDIRECT
Ferrite

AxB=130x130mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP65

IK08
YES

LED

3000K

12W
90

OPAL
DIRECT/INDIRECT
Ferrite

AxB=130x130mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP65

IK08
YES

LED

4000K

12W
90

OPAL
DIRECT/INDIRECT
Ferrite

AxB=130x130mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP65

IK08
YES

LED

2700K

12W
90

OPAL
DIRECT/INDIRECT
Ferrite

AxB=130x130mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP65

IK08
YES

LED

3000K

12W
90

OPAL
DIRECT/INDIRECT
Ferrite

AxB=130x130mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP65

IK08
YES

LED

4000K

12W
90

OPAL
DIRECT/INDIRECT
Ferrite

AxB=130x130mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP65

IK08
YES

Code
1E3527EL90
1E3529EL90
1E3531EL90
1E3527DA90
1E3529DA90
1E3531DA90
1E3521EL90
1E3523EL90
1E3525EL90
1E3521DA90
1E3523DA90
1E3525DA90
1E3533EL90
1E3535EL90
1E3537EL90
1E3533DA90
1E3535DA90
1E3537DA90
