Concept

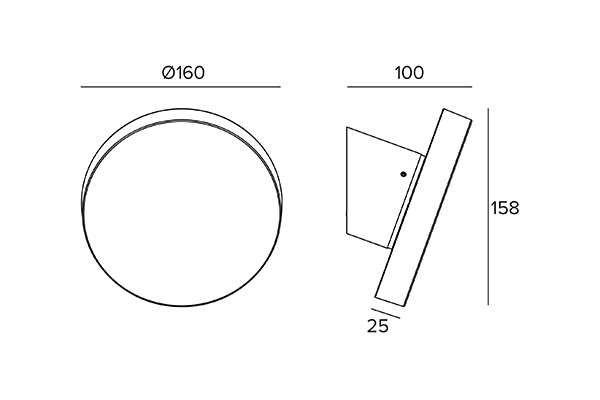

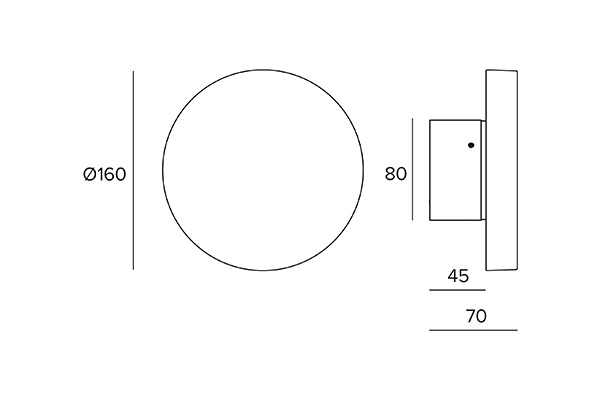

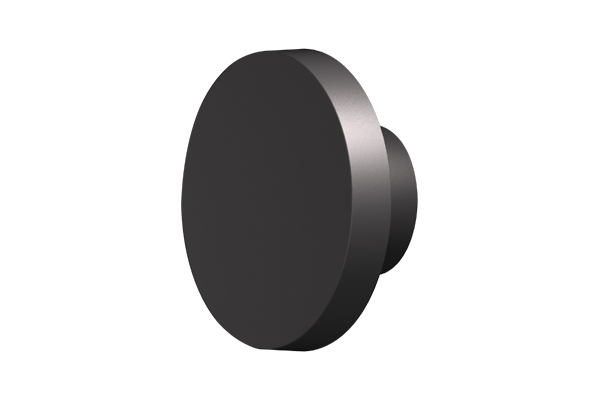

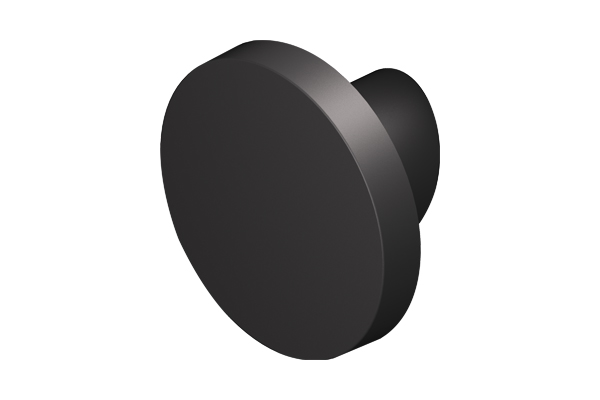

Wall mounted LED fixture with radial emission available in two versions: Flat with a symmetric light effect, Angled for an elliptical asymmetric light effect.Material
Anodized die-cast aluminium powder coated optical head.
Wall mounting bracket (included in the product) in aluminum with cataphoresis protective treatment and coated with powder painting.Source
High efficiency Ra80 LED Chip on Board.
Ra90 on request.Optic
A high reflectance anodised aluminium printed reflector.
Opal polycarbonate diffusive screen.Installation
Stainless steel recessed-mounting box for housing the connection terminal block available as an accessory.Power Supply
To be completed with special 24Vdc driver.
Casambi control system available using a dedicated accessory (only with DALI dimmer).Notes
Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture.
It is possible to subject the product to Cataphoresis treatment on request.
