MRS SMITH
Concept

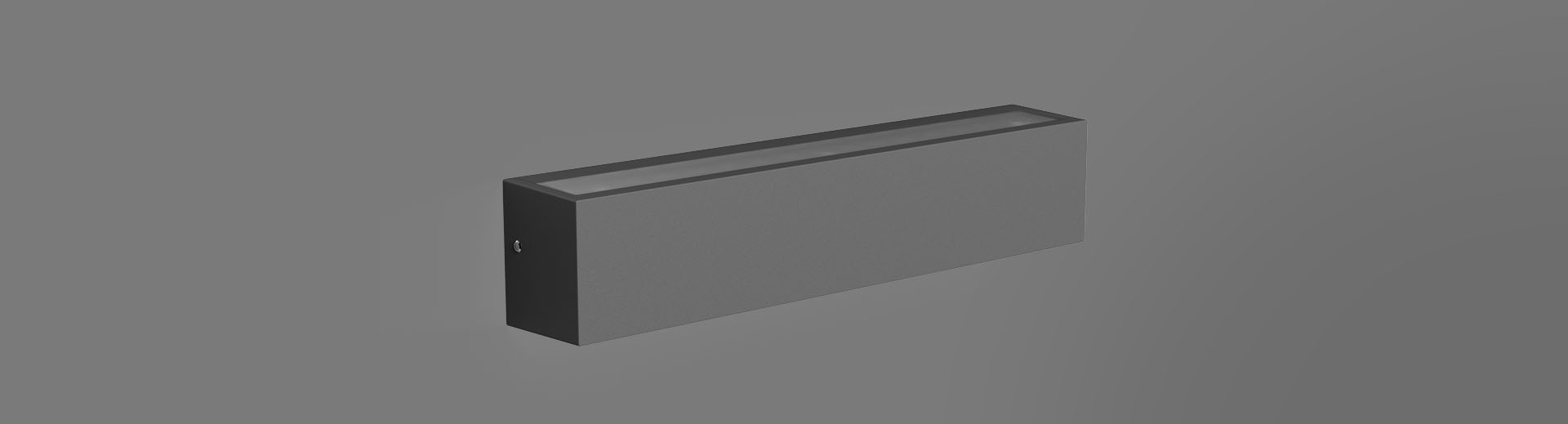

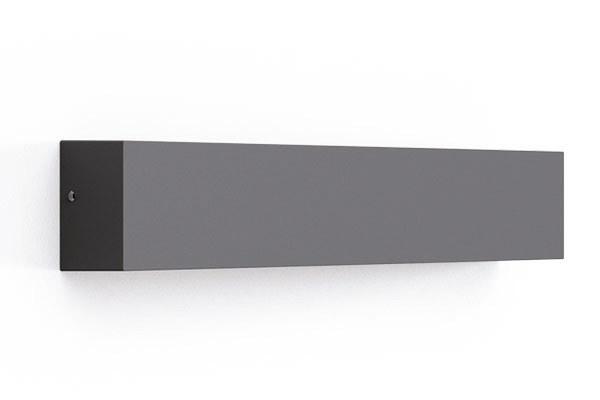

Wall-mounted LED fixture.Material
Painted die-cast anodised aluminium body.
Injection moulded opal polycarbonate screen.Source
Ra90 linear LED card.
3500K on request.Optic
MicroPet, high reflectance white spotlight.
Available with direct, indirect, and direct/indirect emission.Installation
Wall-mounted version with direct attachment on the rear frame of the product.Power Supply
230V version with integrated driver.Notes
Casambi control system available via accessory (only with DALI dimmer or in the DALI version).
Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture.
It is possible to subject the product to Cataphoresis treatment on request.
110-277Vac version available on request.
Wall-mounted LED fixture.Material
Painted die-cast anodised aluminium body.
Injection moulded opal polycarbonate screen.Source
Ra90 linear LED card.
3500K on request.Optic
MicroPet, high reflectance white spotlight.
Available with direct, indirect, and direct/indirect emission.Installation
Wall-mounted version with direct attachment on the rear frame of the product.Power Supply
230V version with integrated driver.Notes
Casambi control system available via accessory (only with DALI dimmer or in the DALI version).
Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture.
It is possible to subject the product to Cataphoresis treatment on request.
110-277Vac version available on request.
Reset selections
MRS SMITH
IP65
IK08
Source
Code
CCT nominal
Flux (lm)
Nominal power
Colour rendering index
Beam angles
Optic
Emission
Colour and finish
Version
Dimensions
Power supply
Type of driver / Control
Driver included
Insulation Class
Protection degree
IP exposed part
IK
Class F
Certifications
LED
2700K
6,1W
90
OPAL
DIRECT
Ferrite

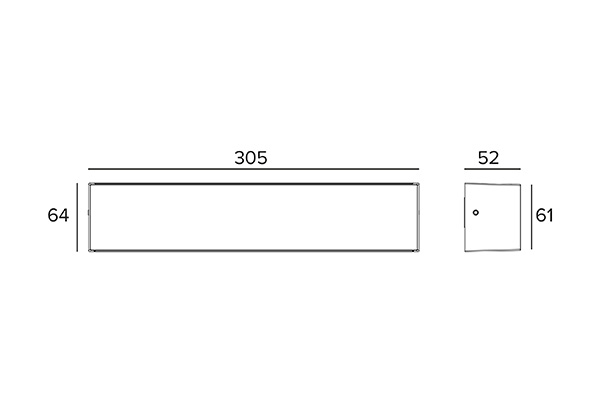

AxB=305x64mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP65
IK08
YES
LED
3000K
6,1W
90
OPAL
DIRECT
Ferrite
AxB=305x64mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP65
IK08
YES
LED
4000K
6,1W
90
OPAL
DIRECT
Ferrite
AxB=305x64mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP65
IK08
YES
LED
2700K
6,1W
90
OPAL
DIRECT
Ferrite
AxB=305x64mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP65
IK08
YES
LED
3000K
6,1W
90
OPAL
DIRECT
Ferrite
AxB=305x64mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP65
IK08
YES
LED
4000K
6,1W
90
OPAL
DIRECT
Ferrite
AxB=305x64mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP65
IK08
YES
LED
2700K
6,1W
90
OPAL
INDIRECT
Ferrite
AxB=305x64mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP65
IK08
YES
LED
3000K
6,1W
90
OPAL
INDIRECT
Ferrite
AxB=305x64mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP65
IK08
YES
LED
4000K
6,1W
90
OPAL
INDIRECT
Ferrite
AxB=305x64mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP65
IK08
YES
LED
2700K
6,1W
90
OPAL
INDIRECT
Ferrite
AxB=305x64mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP65
IK08
YES
LED
3000K
6,1W
90
OPAL
INDIRECT
Ferrite
AxB=305x64mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP65
IK08
YES
LED
4000K
6,1W
90
OPAL
INDIRECT
Ferrite
AxB=305x64mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP65
IK08
YES
LED
2700K
12W
90
OPAL
DIRECT/INDIRECT
Ferrite
AxB=305x64mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP65
IK08
YES
LED
3000K
12W
90
OPAL
DIRECT/INDIRECT
Ferrite
AxB=305x64mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP65
IK08
YES
LED
4000K
12W
90
OPAL
DIRECT/INDIRECT
Ferrite
AxB=305x64mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP65
IK08
YES
LED
2700K
12W
90
OPAL
DIRECT/INDIRECT
Ferrite
AxB=305x64mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP65
IK08
YES
LED
3000K
12W
90
OPAL
DIRECT/INDIRECT
Ferrite
AxB=305x64mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP65
IK08
YES
LED
4000K
12W
90
OPAL
DIRECT/INDIRECT
Ferrite
AxB=305x64mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP65
IK08
YES
Code
1E3545EL90
1E3547EL90
1E3549EL90
1E3545DA90
1E3547DA90
1E3549DA90
1E3539EL90
1E3541EL90
1E3543EL90
1E3539DA90
1E3541DA90
1E3543DA90
1E3551EL90
1E3553EL90
1E3555EL90
1E3551DA90
1E3553DA90
1E3555DA90
