Concept

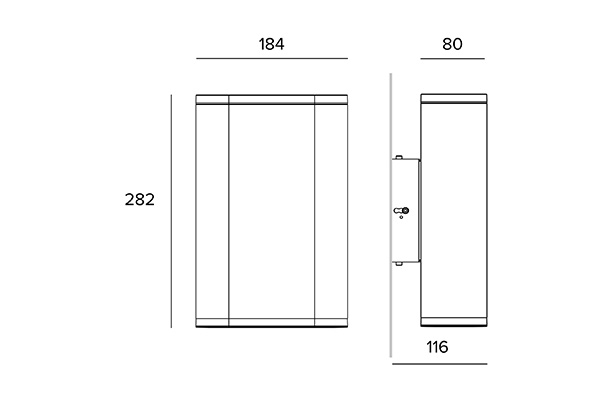

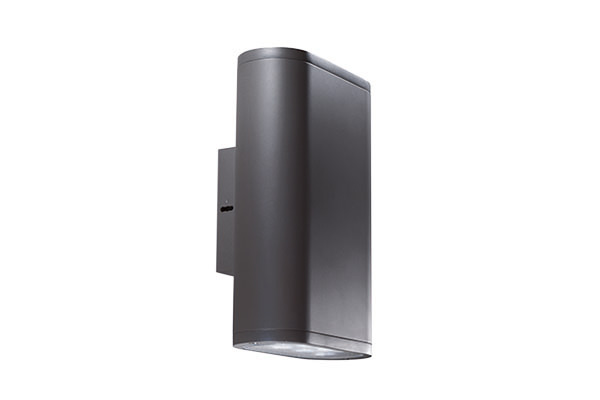

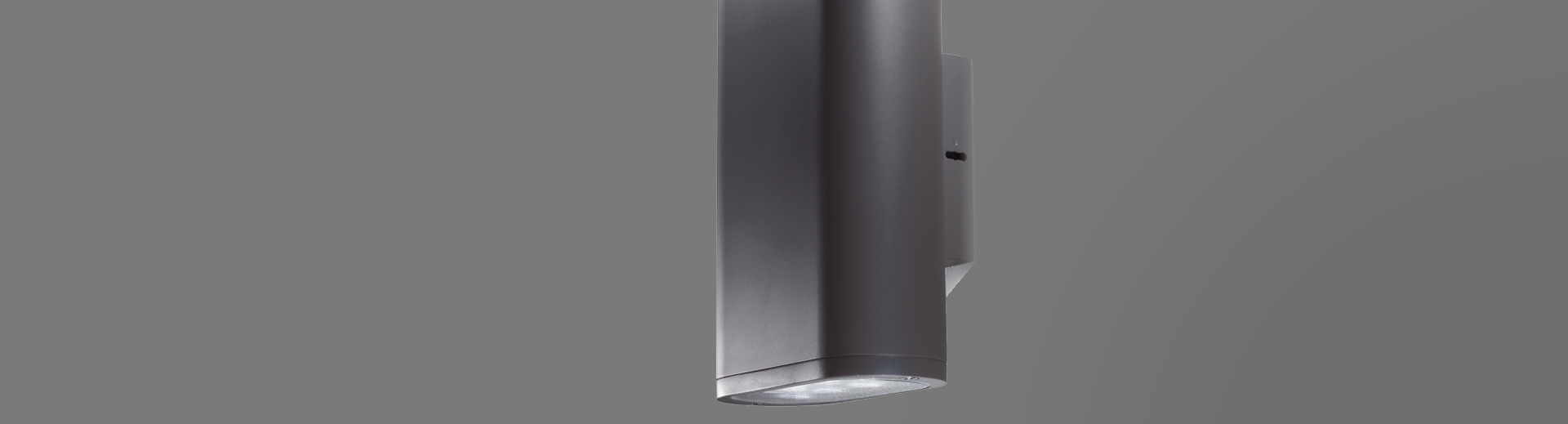

Wall-mounted LED fixture.Material
Anodized and painted extruded aluminium body and anodized and powder coated die-cast aluminium optical unit and terminal.
Tempered glass protective screen.
Mono-emission and Biemission versions.Source
High efficiency LED Chip on Board (ASY and ELL. versions), high efficiency LED Emitter (NSP versions), high efficiency multichip LED Emitter (EFF. versions).Optic
High luminous efficiency pure aluminium reflector.Installation
Parallel wall mounted version.
Equipped with an AISI 316 stainless steel installation bracket.
The body can be adjusted from +/-4° up to +/-8° vertically and +/-4° horizontally.
The fixture can be moved up to 15mm from the mounting surface by sliding the bracket along a special guide.Power Supply
Integrated IP68 electronic power supply.
Watertight optical unit with an IP68 plug for rapid connection to the driver.
Driver box fitted with IP68 watertight connectors driver and pre-cabled with 1m H07RN-F (2x1.5mm²) cable.
The driver can be accessed and inspected easily thanks to the plug & light fitted in the fixture.Notes
EFFECT Version: the fixture comes equipped with a 90° beam aperture.
The beam can be shaped using shutter accessories.
Uses the "Waterblock Plus" technical solution that involves resin coating the connection cables and completely resin coating the integrated driver limiting the risk of humidity reaching the fixture.
It is possible to subject the product to Cataphoresis treatment on request.
110-277Vac version available on request.
